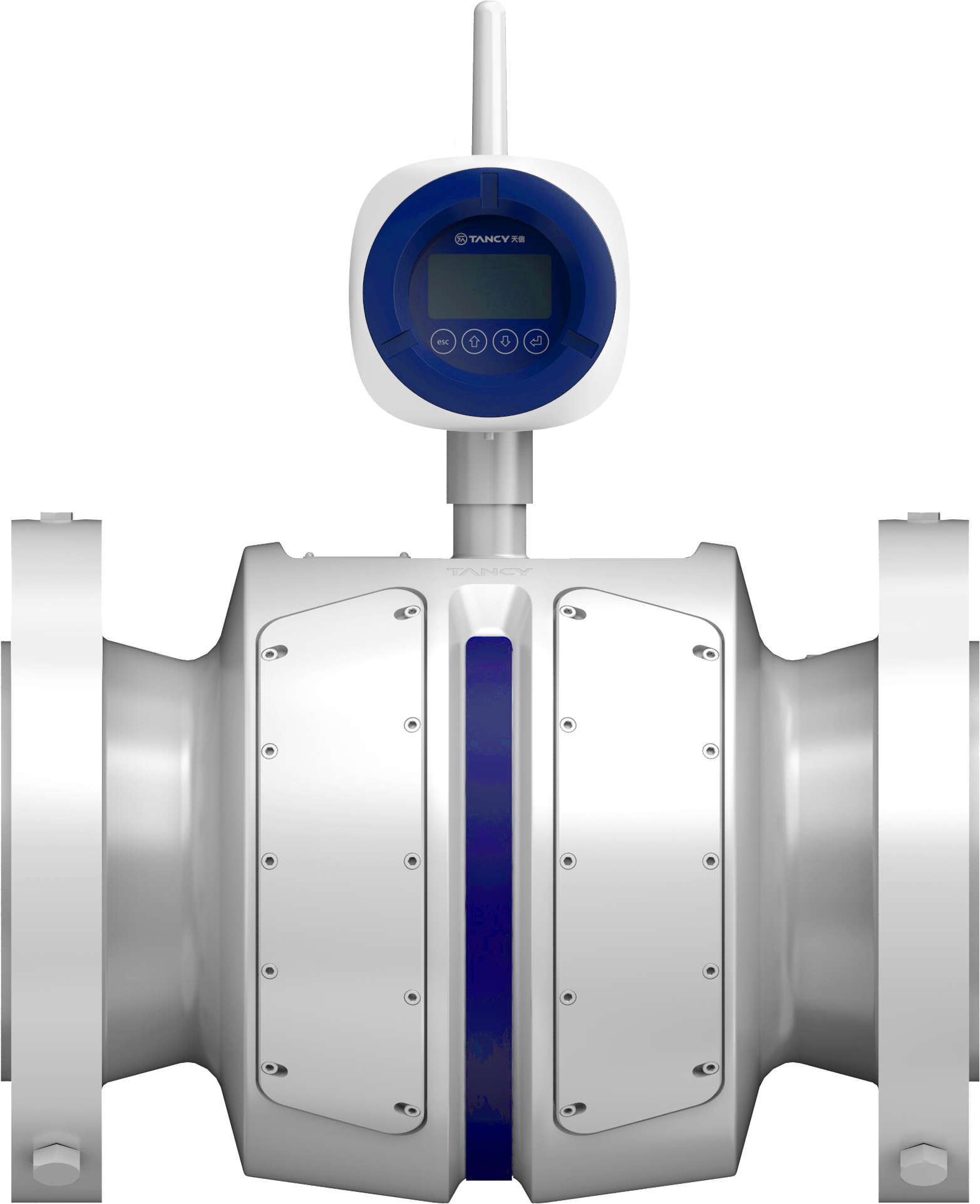

TUS Ultrasonic Gas Flowmeter
Product Overview
Main Advantages
Dimensions
Product Overview

Introduction:

The TUS ultrasonic gas flowmeter has independent intellectual property rights and features high accuracy, high reliability, and high stability. This product adopts multiple acoustic path layouts and supports multiple communication protocols to meet different user needs. The flowmeter is equipped with a built-in temperature sensor, which can detect the temperature inside the pipeline. It can automatically compensate for the measurement deviation caused by the thermal expansion and contraction of the flowmeter housing, thereby reducing inaccuracy.

Approvals:

IECEX

ATEX
OIML
UL
PED

Main Advantages
Ultrasonic Transducer
Titanium housing, 200 kHz operating frequency. 42 MPa max operating pressure
Self-diagnosis Function
Measurement and diagnostic data support accurate equipment condition analysis
Structural Features
Full-bore design with no moving parts bidirectional measurement supported
Temperature Compensation
Built-in high precision sensor compensates measurement deviations from temperature changes
Cloud Service (Optional)
4G loT enables cloud data upload and lifecycle management

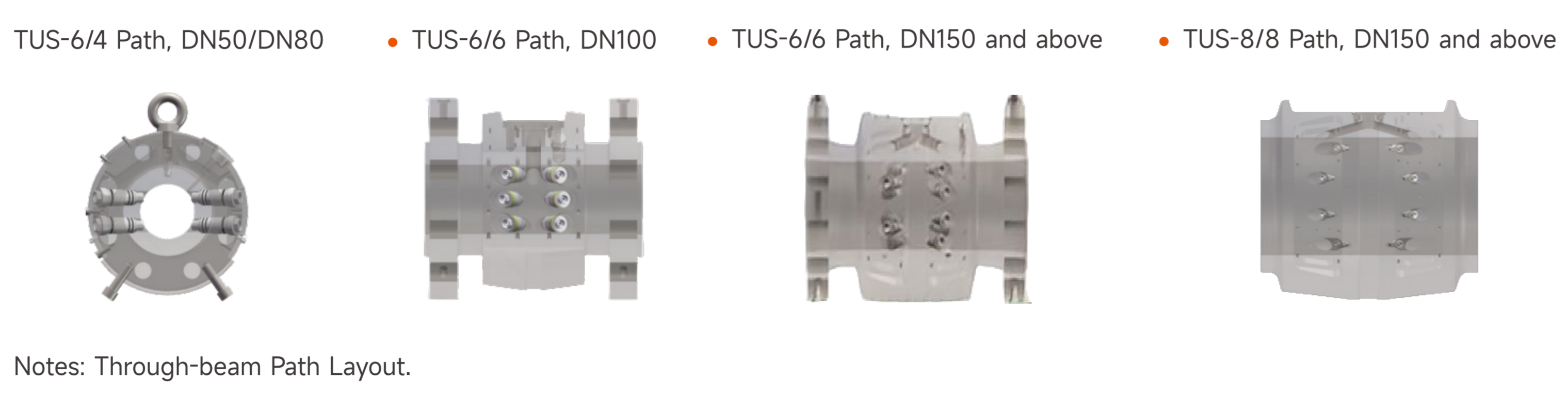

Path Layout:

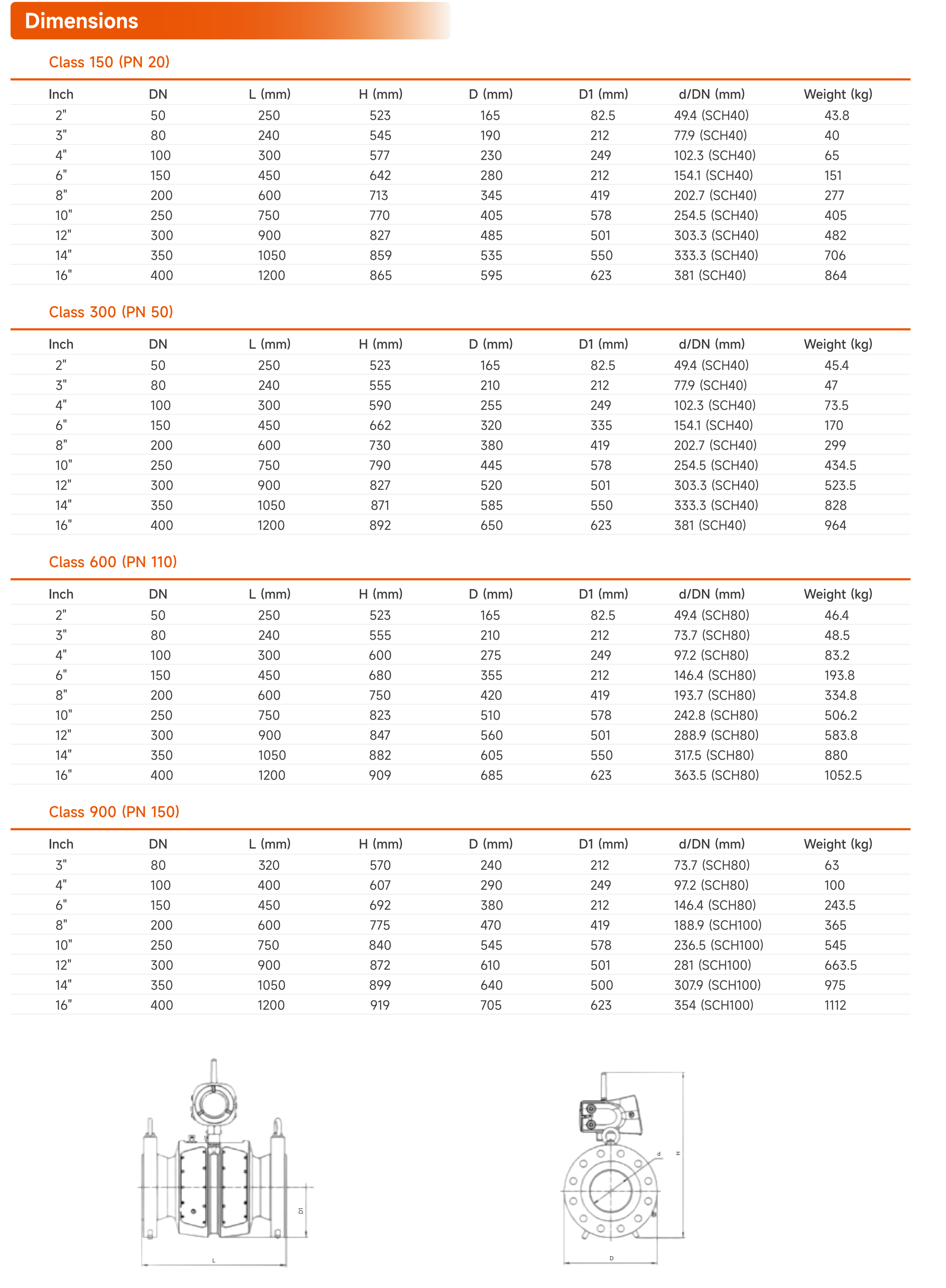

Dimensions

Goldcard Smart Gas Product Brochure 260130_21(1).png

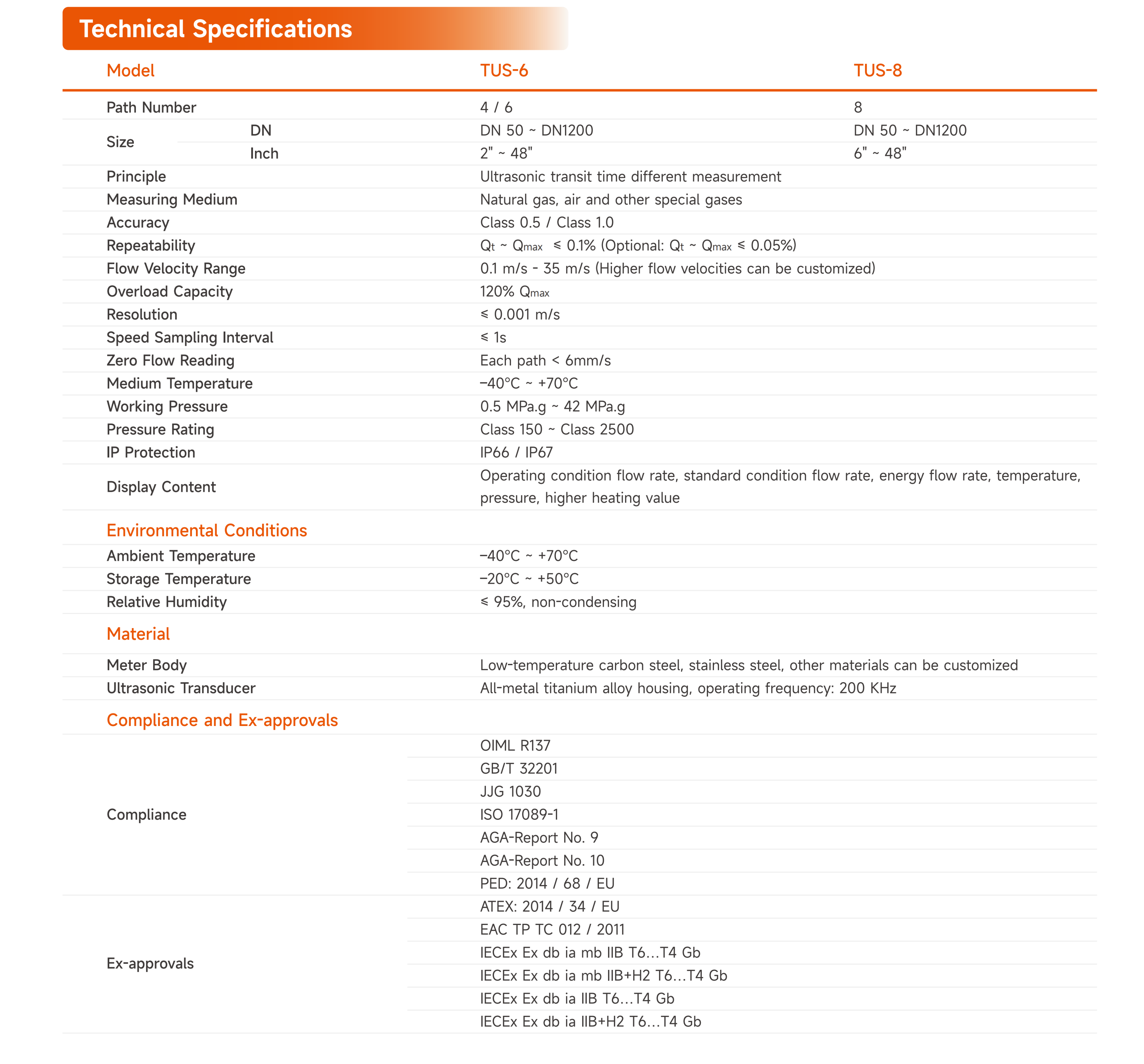

Technical Specifications

Goldcard Smart Gas Product Brochure 260130_21(1).png
