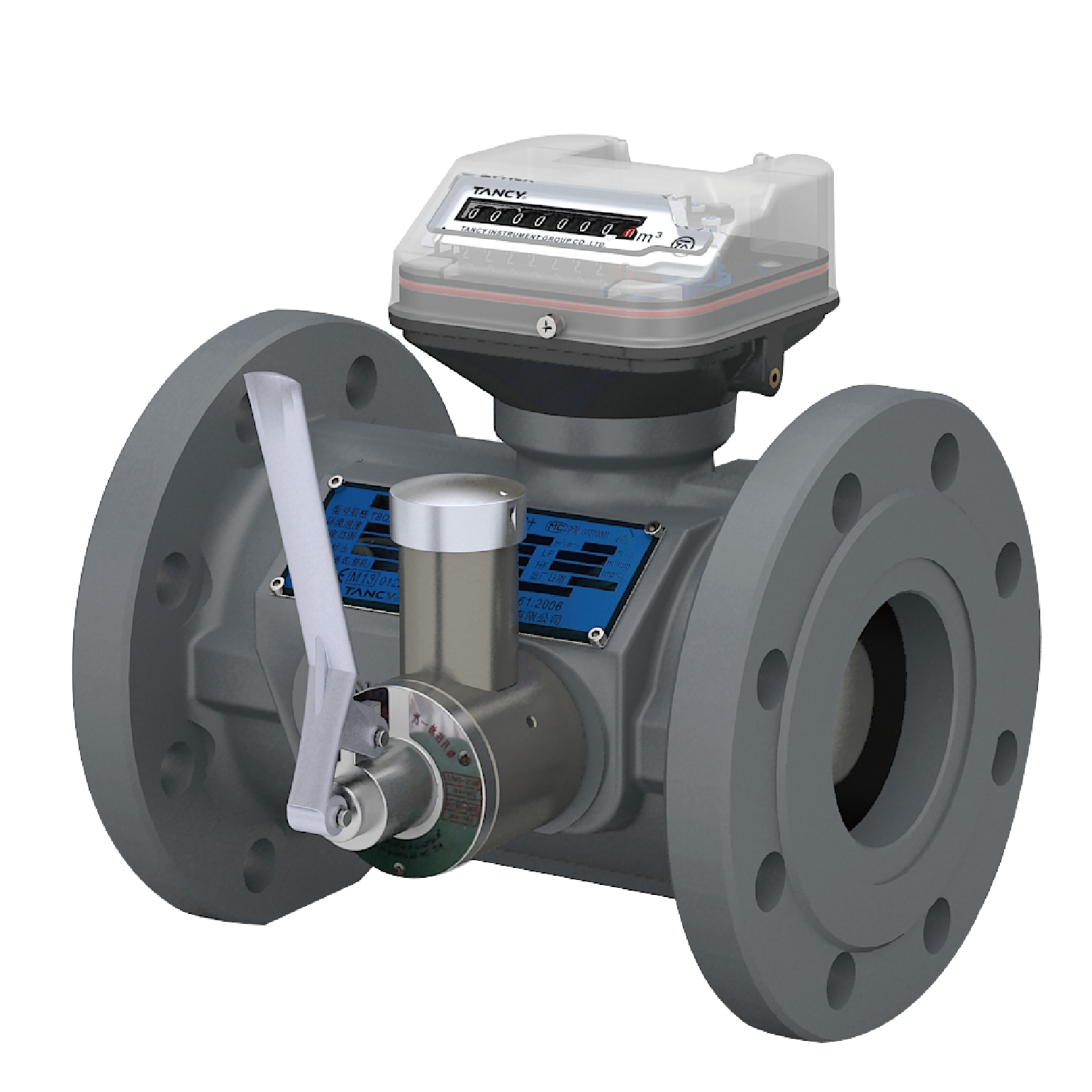

TBQM Turbine Gas Flowmeter

Product Overview

Main Advantages

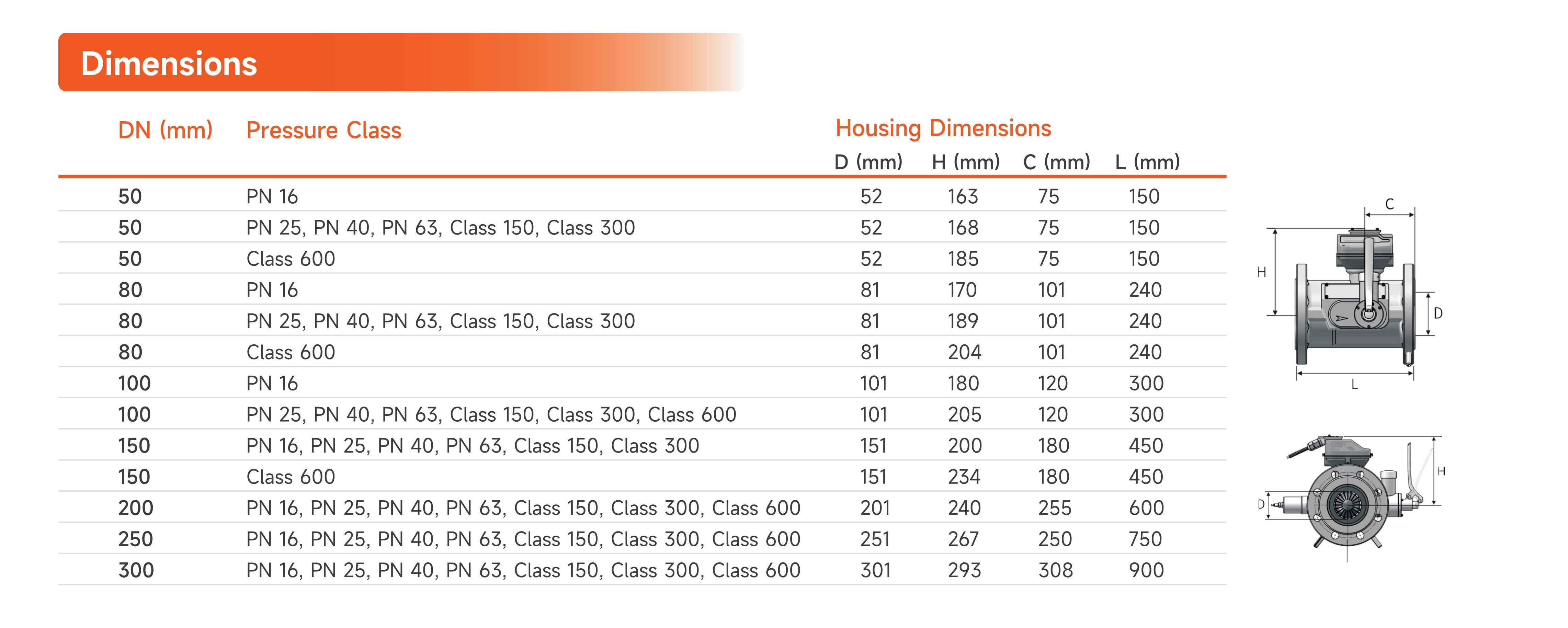

Dimensions

Product Overview

Introduction:

The TBQM turbine flowmeters comply with the European requirements of EN12261 and OIML R137-1&2:2012. The product can be widely used for fiscal or in-plant volume measurement of combustible gases of the first, second and third gas family(natural gas, town gas, propane, butane and others), purified and dried biogas as well as other inert, non-aggressive gases and non-explosive gases and gas mixtures. It is the ideal instrument for residential, office buildings, commercial and industrial plants.

Approvals:

MID according EN 12261:2018 “Gas meters-Turbine gas meters”
MID Module B+D
OIML R137-1&2:2012“Gas meters"
ATEX, IECEx (The ATEX and lECEx explosion-proof certifications are for low-freguency modules.)
PED

Main Advantages

Size

G65 - G4000

Rangeability

20:1, up to 50:1

Lubrication Methods

Built-in integrated lubrication system

Pressure Class

PN 16 up to PN160, Class 150 up to Class 900

Output Function

Supports 3-way high-frequency output

Operating Principle:

The rotating speed of the turbine is proportional to the gas flow rate within a defined flow range. The turbine rotates and transmits the motion to the mechanical counter reading unit, which is mounted on the outside of the housing through the decelerating transition mechanism and magnetic coupling connector, thus realizing the counting and output of the flow-pulse signal (LF or HF).

Dimensions

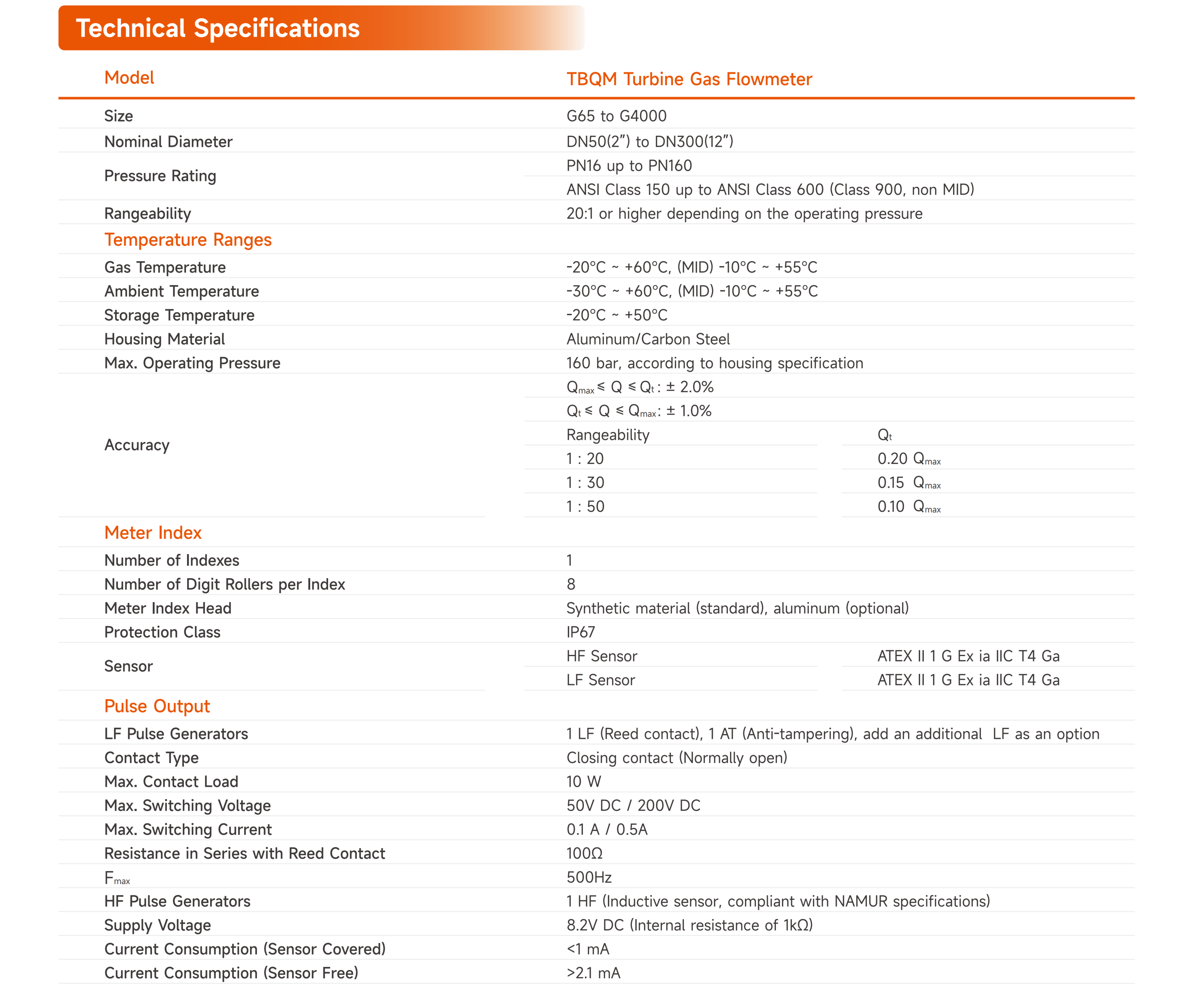

Technical Specifications
