INFINITY Lite Remote Meter Reading Module-Goldcard

INFINITY Lite Remote Meter Reading Module

Product Overview

Main Advantages

Dimensions

Product Overview

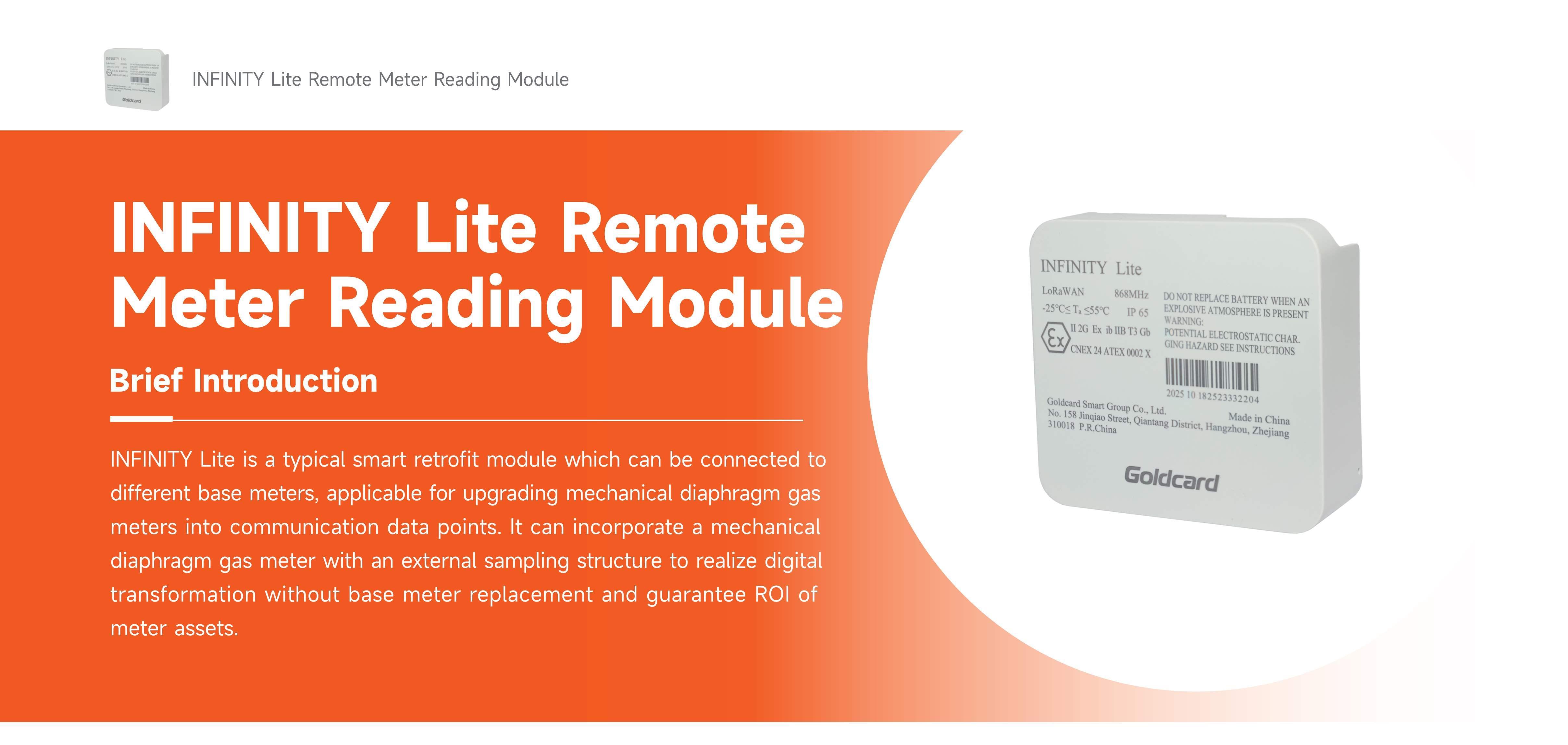

Introduction:

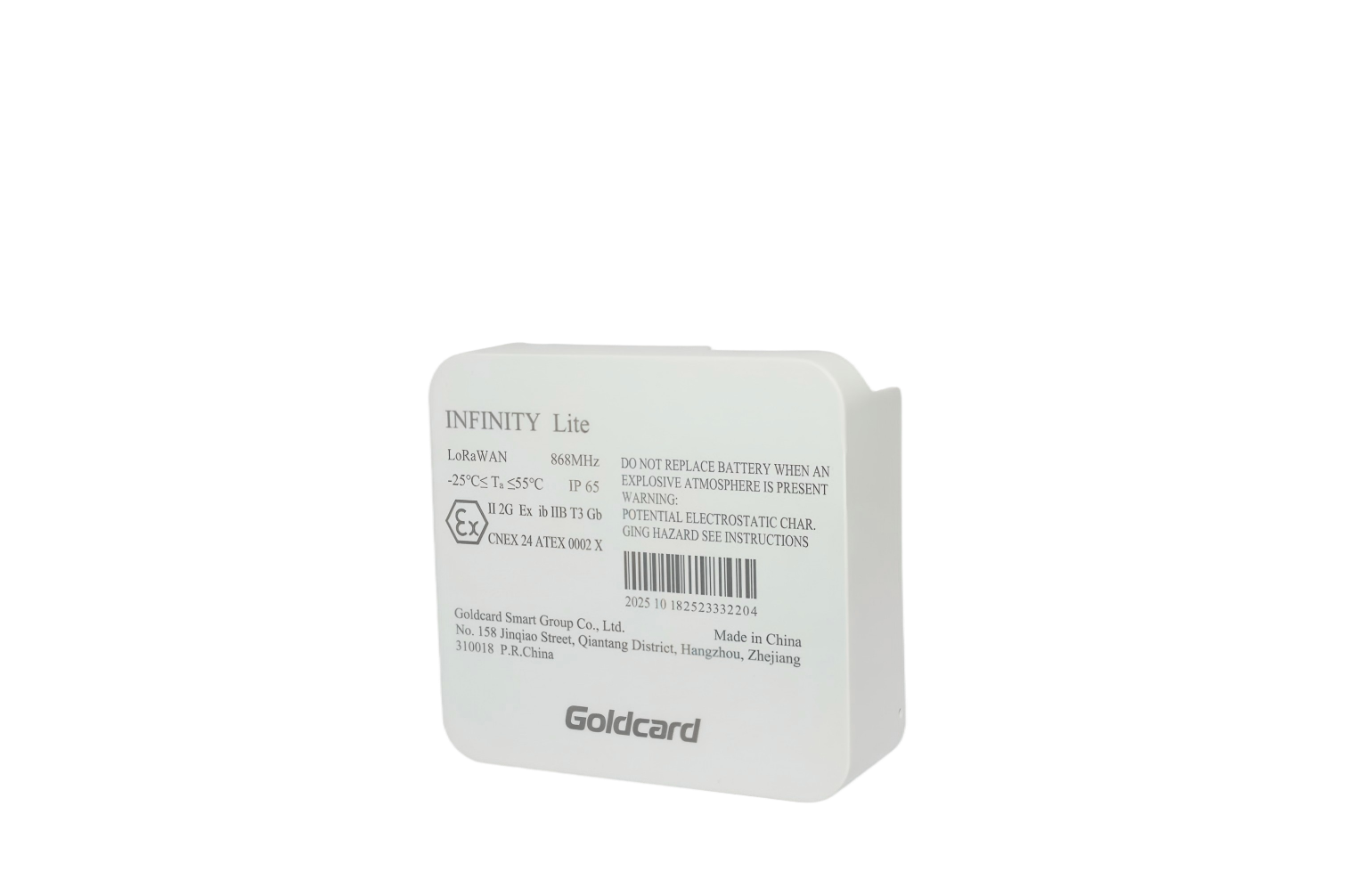

INFINITY Lite is a typical smart retrofit module which can be connected to different base meters, applicable for upgrading mechanical diaphragm gas meters into communication data points. It can incorporate a mechanical diaphragm gas meter with an external sampling structure to realize digital transformation without base meter replacement and guarantee ROI of meter assets.

Approvals:

ATEX

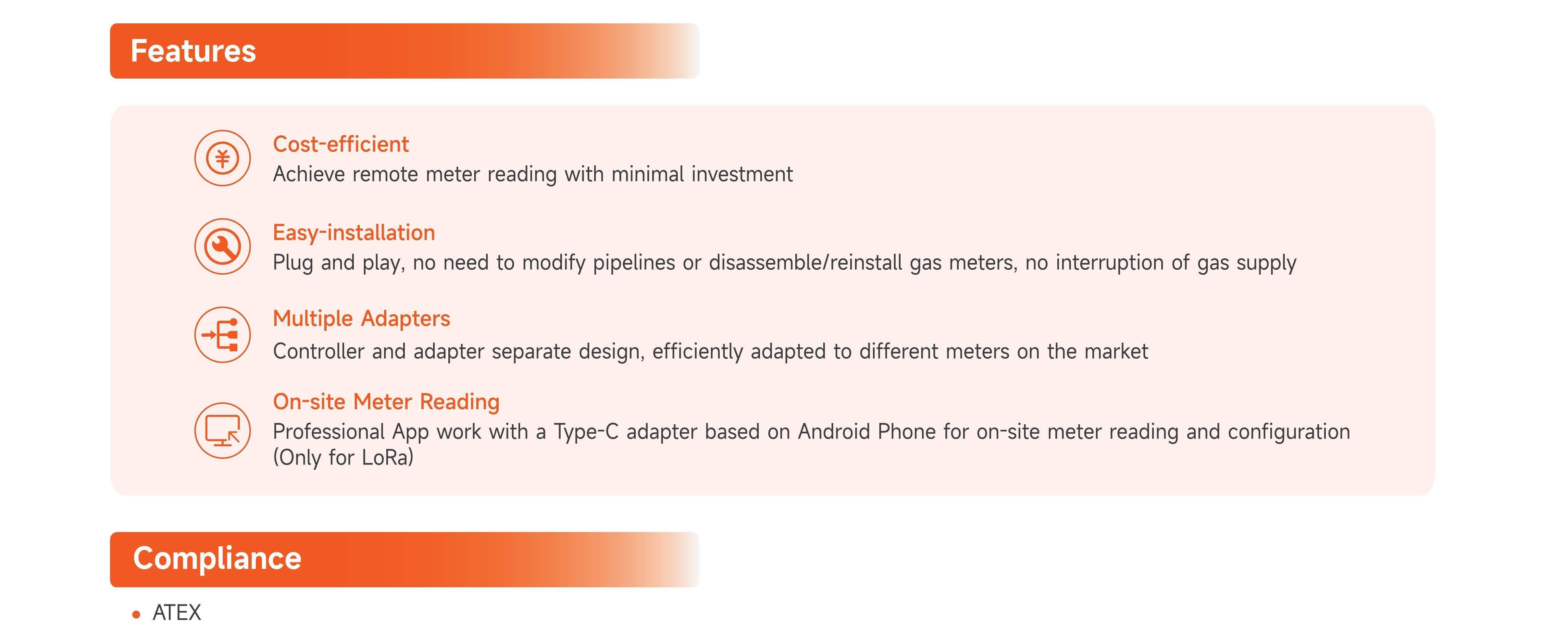

Main Advantages

Cost-efficient

Achieve remote meter reading with minimal investment

Easy-installation Plug and play

Plug and play, no need to modify pipelines or disassemble/reinstall gas meters, no interruption of gas supply

Multiple Adapters

Controller and adapter separate design, efficiently adapted to different meters on the market

On-site Meter Reading

Professional App work with a Type-C adapter based on Android Phone for on-site meter reading and configuration (Only for LoRa)

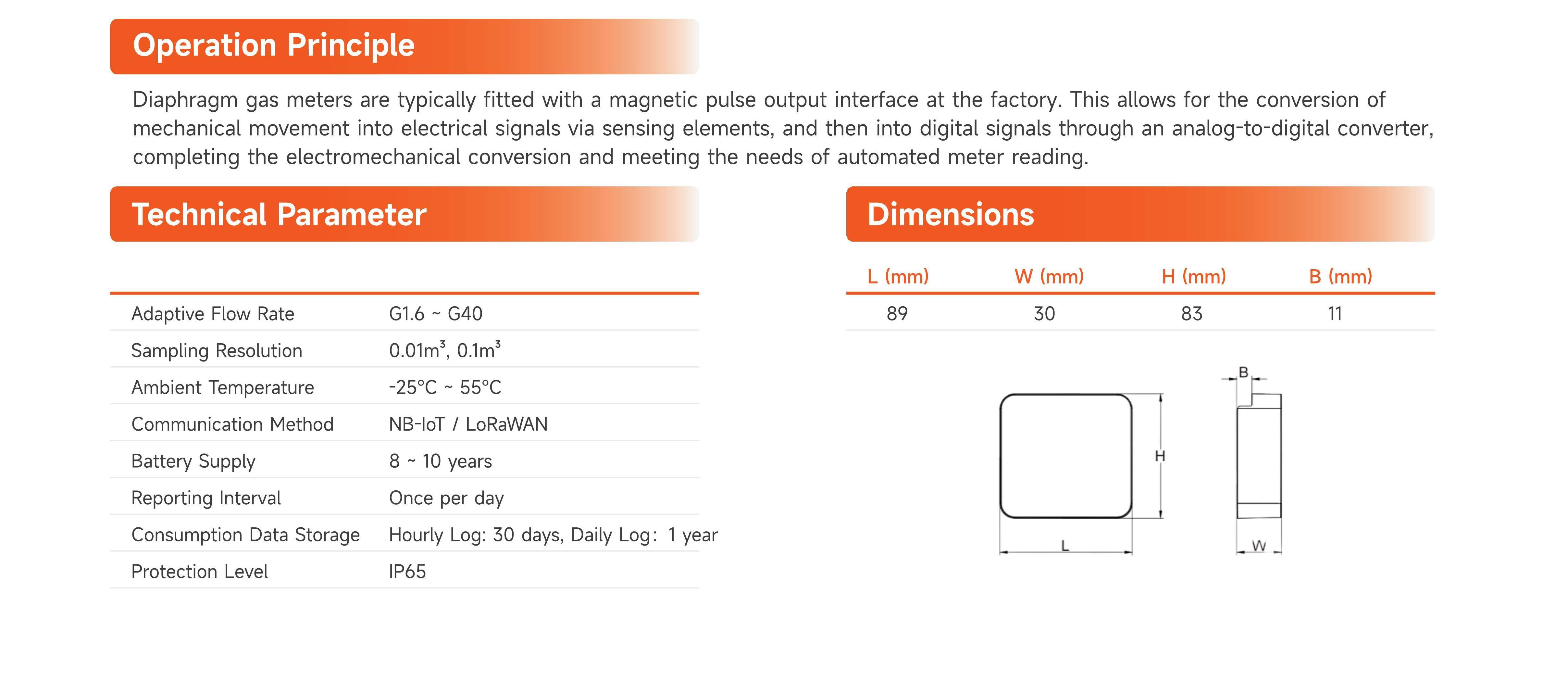

Operating Principle:

Diaphragm gas meters are typically fitted with a magnetic pulse output interface at the factory. This allows for the conversion of mechanical movement into electrical signals via sensing elements, and then into digital signals through an analog-to-digital converter, completing the electromechanical conversion and meeting the needs of automated meter reading.

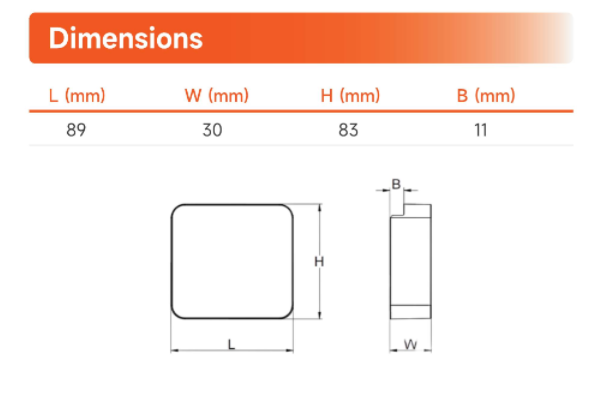

Dimensions

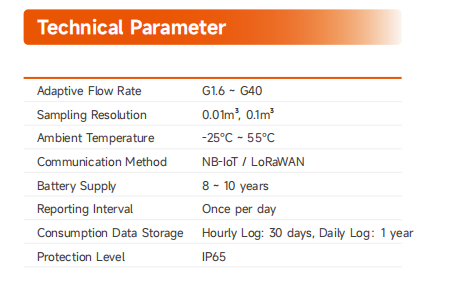

Technical Specifications
